Power Supply Models | The POWERPAK provides constant DC operating power for each motorized valve actuator in the system. As the power is used, the batteries are constantly recharged by either AC or Solar.

Custom Search

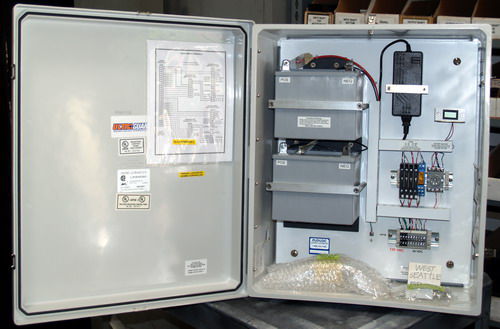

The POWERPAK provides constant DC operating power for each motorized valve actuator in the system. As the power is used, the batteries are constantly recharged by either AC or Solar. Standard battery size is 12 Volts DC at 31 Ah, connected in series to provide 24 Volts DC. Should the charging system fail, the fully charged batteries will allow approximately 90 minutes of single valve actuator operation (Consult FLO-LOC for individual value operational specifications). If a typical valve open/close cycle takes six minutes, a fully charged POWERPAK will allow at least 10 full cycles over a period of days or weeks before recharging.

Standard:

7Ah
31 Ah
battery charge LCD voltmeter
In a NEMA 4X Fiberglass enclosure 24x20

Options for multiple valve actuators:

50 Ah
100 Ah
Deep Cycle
Combination Seismic Controller and POWERPAK in a single enclosure

SCADA options:

AC ON
Circuit Breaker OK
Battery OK
Battery LOW
